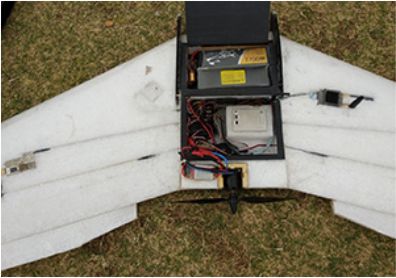

Pushpak RC Mapper V4 (1400MM) – Precision Mapping. Unmatched Stability. Built for the Skies.

Unlock the skies for your aerial mapping, surveying, and FPV exploration missions with the Pushpak RC Mapper V4 (1400MM) – a professionally engineered fixed-wing platform designed to deliver long-range performance, flight efficiency, and exceptional stability in every flight.

Crafted for aerial mapping professionals, surveyors, and long-range FPV enthusiasts, the Mapper V4 features a 1400mm wingspan that ensures a high lift-to-drag ratio, smooth glide performance, and extended flight durations. Whether you’re using Pixhawk or INAV-based flight controllers, this aircraft is built to handle autonomous missions with precision.

🛩️ Key Highlights:

• Large 1400mm Wingspan: Offers superb gliding performance, excellent endurance, and high payload capacity – ideal for mapping and long-range missions.

• Aerodynamic, Lightweight EPO Design: Constructed from high-quality Expanded Polyolefin (EPO) foam, the Mapper V4 is light yet rigid, offering the perfect balance between strength and efficiency.

• Modular, Field-Friendly Design: Features detachable wings and tail for easy transport, fast field assembly, and quick access to internal compartments.

• Spacious Payload Bay: Accommodates a variety of mapping payloads such as Raspberry Pi cameras, point-and-shoot cameras (with gimbals), or FPV gear with minimal modification.

• Optimized for Autopilot Systems: Designed with ample space and ventilation for Pixhawk, INAV, or other flight controller systems, plus enough room to carry telemetry modules, GPS, and power modules.

📐 Specifications:

• Wingspan: 1400mm

• Length: Approx. 950mm

• Material: High-Quality EPO Foam

• Empty Weight: ~750g

• AUW (with electronics & battery): ~1200g–1500g (depending on payload)

• Payload Bay Dimensions: Spacious enough for custom camera gimbals and electronics setups

🔋 Recommended Power Setup (Not Included):

• Brushless Motor: 2216/1400KV or 2217/1250KV

• ESC: 40A–50A with BEC

• Propeller: 9×6 or 10×6 depending on motor setup

• Servos: 9g Digital x 4

• Battery: 3S or 4S LiPo, 3300mAh to 5200mAh

• Flight Controller: Pixhawk, Matek, or similar

• GPS + Telemetry modules (optional)

• FPV Camera + VTX (optional)

🚀 Flight Performance:

• Cruise Speed: 40–50 km/h

• Flight Time: 30–60 minutes depending on payload and battery

• Launch: Hand launch or bungee assist

• Landing: Glide landing (runway or grass)

🔧 Ideal Applications:

• Precision Aerial Mapping

• Agriculture & Land Surveying

• FPV Long-Range Exploration

• Research & University Drone Projects

• Autonomous Waypoint Missions

🌐 Why Choose Mapper V4?

From efficient aerial surveys to exploratory FPV flights, the Pushpak RC Mapper V4 stands out as a versatile, professional-grade platform that delivers exceptional results. With its spacious internals, aerodynamic body, and long-endurance flight profile, it’s the go-to choice for pilots who demand both performance and reliability in mission-critical flights.
